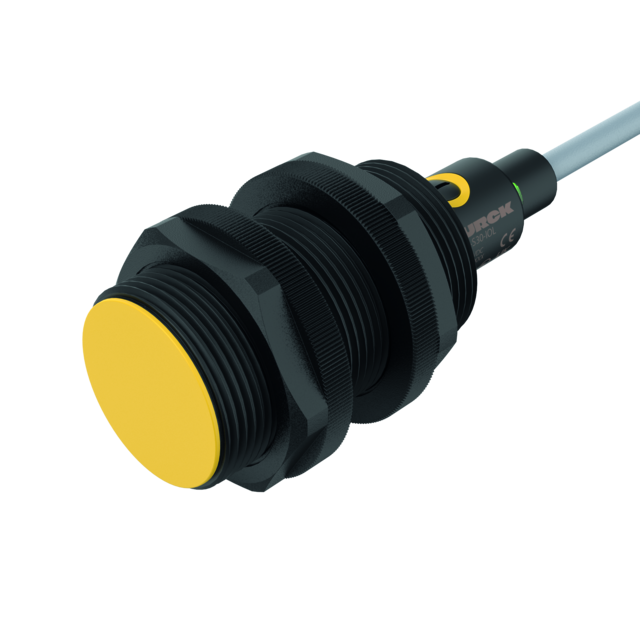

Product UC25-S30-IOL
Capacitive sensor
Order number: 100050170- M30 × 1.5 threaded barrel
- Plastic, PA12-GF30
- Digital potentiometer
- Three different teach functions
- Can be parameterized via IOL
- Two switching outputs, can be parameterized independently
- Highly visible LED
Technical Data
| Function | Level detection, For dry granules, For highly viscous media, Continuous level measurement |
| Design | Threaded barrel |
| Output function | NO/NC programmable, PNP/NPN |
| Communication protocol | IO-Link |
| Electrical connection | Stranded wires, Open end |
| Housing material | Plastic, PA12-GF30, PEI |
| Ambient temperature | -40…+105 °C |
| Protection class | IP67 |
