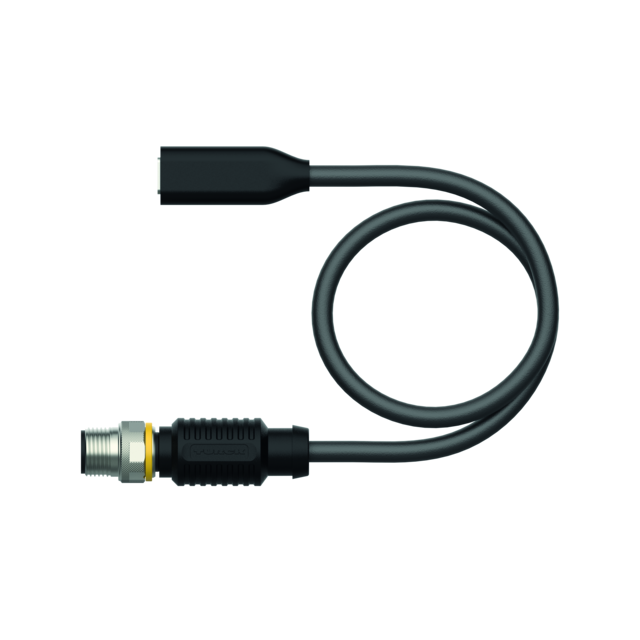

Product  AD-USBCK-0.5-RSC4.072T/DC-DC-5V

Industrial DC Charging Cable

M12 to USB

Extension Cable

Order number: 6637490
  • USB-C female connector, straight, 24-pin
  • Male M12, straight, 3-pin
  • Jacket material: PVC
  • Jacket color: black
  • Protection class: IP67 (M12); IP20 (USB)
  • USB output: 5 VDC, 3 A, 15 W/9 VDC, 1.6 A, 15 W
  • Cable length: 0.5 m
#

Technical Data

Ambient temperature -25…+70 °C
Approvals cULus, CE, UKCA
