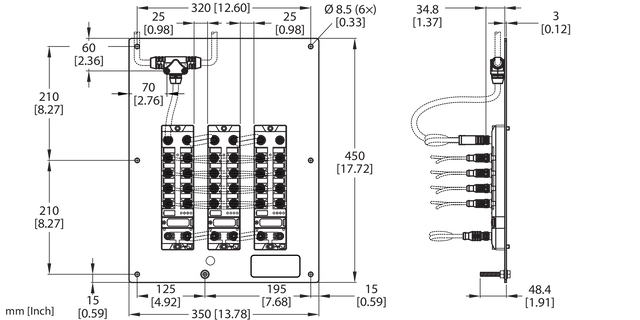

Product TBCS-LL-SET-02
EtherNet/IP safety spanner
Master-to-master safe and secure data exchange
Order number: 100051245- Internal connections pre-wired in the set.
Wiring must not be changed!
The set may only be supplied via the specified supply point! - 4-bit secure data exchange
- 256 bytes of non-secure data exchange
- Ethernet/IP device
- Integrated Ethernet switch
- 10 Mbps/100 Mbps supported
- 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection

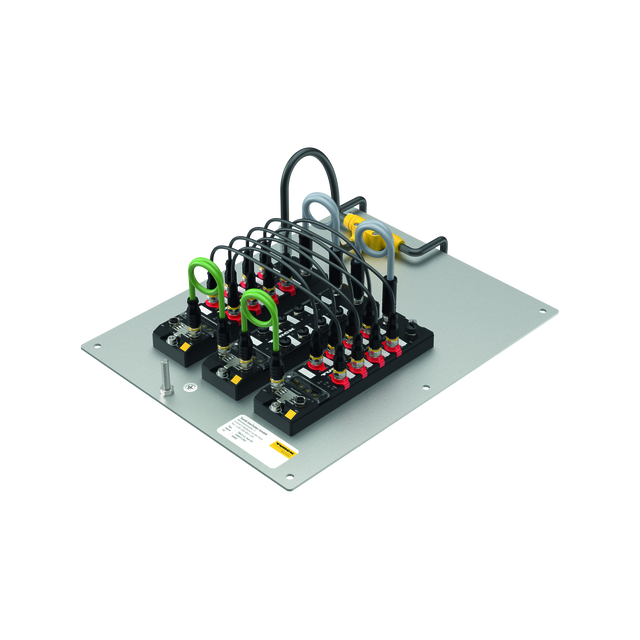

- Installed pre-wired on aluminum plate
- Glass-fiber-reinforced housing
- Shock- and vibration-tested
- Fully encapsulated module electronics
- Protection classes IP65, IP67, IP69K
- M12, L-coded connector for power supply
Technical Data
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
Data Sheets
| German | 653 KB |
| English | 653 KB |
| French | 654 KB |
| Spanish | 653 KB |
| Czech | 654 KB |
| Dutch | 653 KB |
| Romanian | 653 KB |
| Russian | 755 KB |
| Polish | 654 KB |
| Chinese | 732 KB |
| Turkish | 653 KB |
Configuration File
Configuration Software
EPLAN Electric P8
Manual
| TBIP-Lx-4FDI-4FDO Manual | 7813 KB |
| TBEN-LL-EN1 Manual | 17620 KB |
| Installation and Licensing | 904 KB |
| TBIP Safety Manual | 2483 KB |
Manufacturer's Declaration
| EU Declaration of Conformity According to Machinery Directive | 242 KB |
| EU and UK Declaration of Conformity According to ATEX | 120 KB |
Quick Start Guide
Mounting accessories
|
SMBVERA
Bracket for mounting on right side |
3097185 |
Connectivity accessories
|
RKS12T-2/TXL
Connection cable, M12 female connector, straight, 12-pin, shielding on coupling nut; cable length: 2 m, jacket material: PUR, black; cULus approval |
6626917 |
|
RSS RJ45S 841-2M
Extension cable for Industrial Ethernet, M12 male connector to RJ45 male connector, 8-pin, cable length: 2 m, jacket material: TPE, green, shielded, stranded wires, twisted pair |
U8626-2 |
Functional accessories
|
LCF12LEVMP
C-mount lens, 12 mm focal distance |
3097347 |
|
VELC60-PC
Lens cover, length: 60 mm, Window material: Polycarbonate |
3097182 |
|
FLTR635-27
Bandpass filter red, 27 mm diameter suitable for LCFxxLEVMP lenses |
3097530 |
|
LEDRRV70XD5-PM
High-intensity LED ring light, adjustable via potentiometer, for installation and control on a VE smart camera, light color: red |
3097364 |
|
LEDRRV62X62M
LED ring light for installation and control on a VE smart camera, light color: red |
3097378 |
