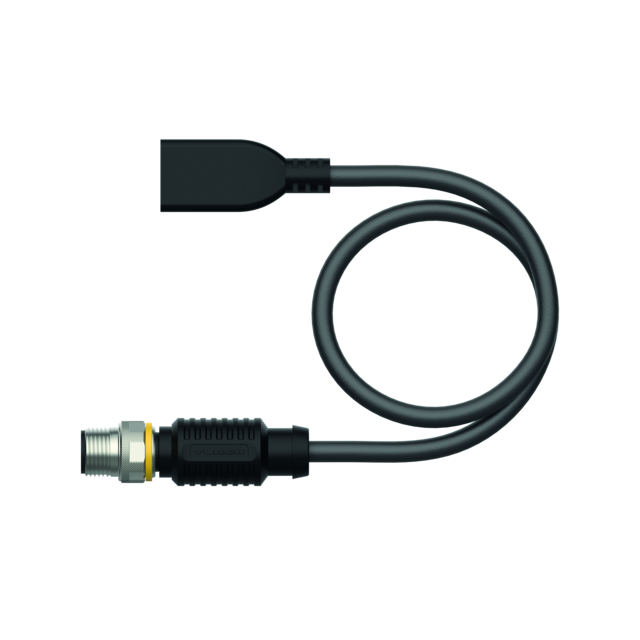

Product AD-USBAK-0.5-RSC4.072T/DC-DC-5V
Industrial DC Charging Cable
M12 to USB
Extension Cable
Order number: 6637491- USB-A female connector, straight, 4-pin
- Male M12, straight, 3-pin
- Jacket material: PVC
- Jacket color: black
- Protection class: IP67 (M12); IP20 (USB)
- USB output 5 VDC, 2 A, 10 W
- Cable length: 0.5 m
Technical Data
| Design | Extension Cable |
| Number of pins | 2 |
| Connector body | Plastic, PVC, Black |
| Number of Pins | 3 |
| Connector body | Plastic, TPU, Black |
| Coupling nut/retaining screw | Brass, Nickel-plated |
| Current | 0.5 A |
| Cable diameter | Ø 5.5 mm |
| Cable length | 0.50 m |
| Cable jacket | PVC, Black |
| Number of Conductors | 2 |
| Protection class | IP20 |
| Approvals | cULus, CE, UKCA |
